09-14 Acura TSX Under Tray
BLACK POWER COATED

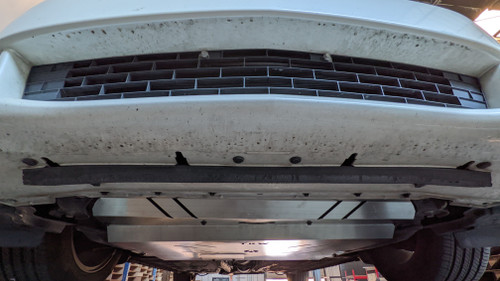

The OEM plastic splash shield offers no protection from the elements or road debris and essentially is a gaping hole below the engine.  Many newer cars has a plastic panel that covers this whole area which at least offers water and dirt protection.  The 09-14 Acura TSX has almost nothing to help protect you under the car.  The TBW under tray has been developed to remedy and fix this problem.  This will affix to the front bumper, and will go back behind the engine so you have a barrier between the road and the oil pan. Designed to take handle typical street use, however if you decide you want to go for a rally version offering added thickness for more regular abuse, let us know and we can customize something for you.

A door for quick oil changes has been built into this - this is designed to allow you to change the oil without having to remove the under tray.  2 simple bolts and you can drain the oil and change the filter.

Installation is relatively simple but does require a rivet nut tool for installation because Honda/Acura didn't thread the holes into the chassis. We will provide the hardware, including rivet nuts, extruded u-nuts bolts and spacers, but you will need to source your own rivet nut tool to install this.
Here example of some cheap rivet nut tools (amazon, amazon2)

FITS:
2009-2014 Acura TSX w/ 2.4L engine (4 cyl)

Install Instructions

• MADE OF .063 ALUMINUM - hard aluminum resistant to denting and splitting but lightweight to avoid adding unnecessary weight
  LASER CUT - Precise cuts to fit stock mounting points * CLEARANCE - Clearance as good as OEM or better, but stronger which improves airflow
• RIGIDITY - Offers better protection while strengthening bumper support for better stability at high speeds
• OIL CHANGE DOOR - Easy Access Door for quick oil changes
• VENTED DESIGN - Helps to aid with air flow and heat removal
