CSF

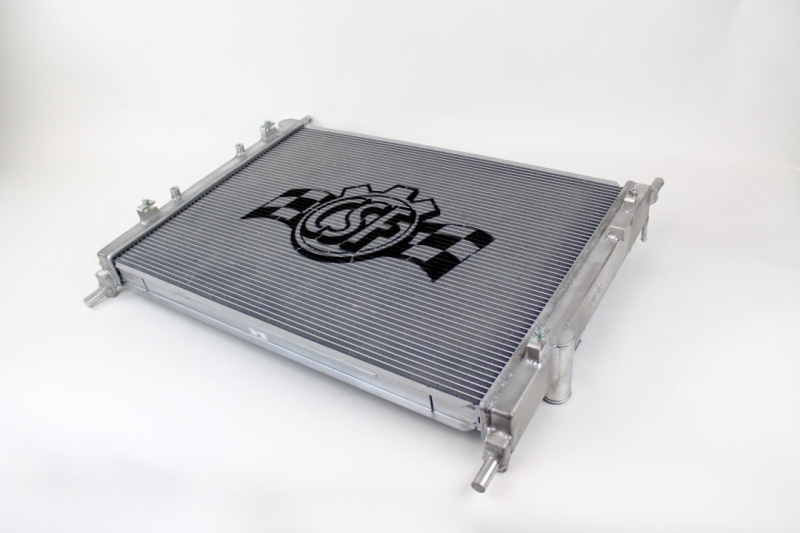

CSF 2015+ Ford Mustang GT 5.0L Radiator - 7073

$499.00
No reviews yet Write a Review
Adding to cart… The item has been added
SKU:
CSF7073
UPC:
710353070734
Availability:
Regularly stocked product
  • Free Ground Shipping

  • Custom

  • Safe Payments

  • TBW PARTS

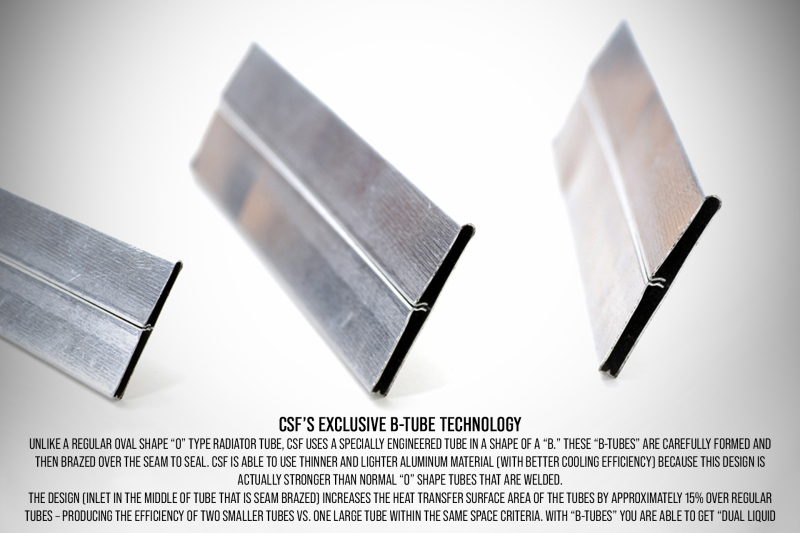

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Mustang running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

This Part Fits:

YearMakeModelSubmodel
2019-2020FordMustangBullitt
2015-2023FordMustangGT
2015-2020FordMustangShelby GT350
2015-2017FordMustangV6
MPN:
7073
