CSF

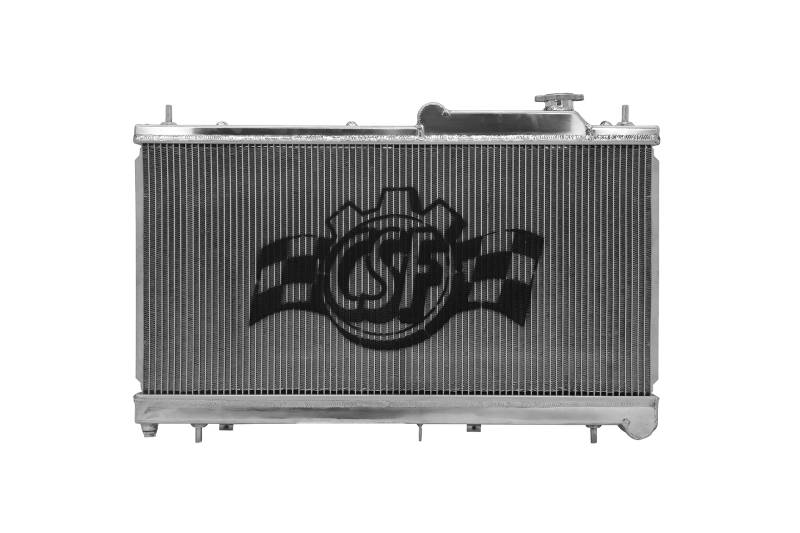

CSF 08-15 Subaru Impreza WRX/STI 1-Row 31mm High-Performance Aluminum Radiator - 7094

MSRP: $349.00
$329.00
( saved $20.00 )
No reviews yet Write a Review
Adding to cart… The item has been added
SKU:
CSF7094
UPC:
710353070949
Availability:
Regularly stocked product
  • Free Ground Shipping

  • Custom

  • Safe Payments

  • TBW PARTS

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your WRX/STI running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

This Part Fits:

YearMakeModelSubmodel
2016-2017SubaruCrosstrekBase
2016SubaruCrosstrekHybrid
2016SubaruCrosstrekHybrid Touring
2016-2017SubaruCrosstrekLimited
2016-2017SubaruCrosstrekPremium
2009-2013SubaruForesterX
2009-2013SubaruForesterX Premium
2011-2013SubaruForesterX Touring
2009SubaruImpreza2.5 GT
2012-2016SubaruImprezaBase
2012-2016SubaruImprezaLimited
2012-2016SubaruImprezaPremium
2012-2016SubaruImprezaSport Limited
2012-2016SubaruImprezaSport Premium
2008-2014SubaruImprezaWRX
2008-2014SubaruImprezaWRX STI
2006-2009SubaruLegacy2.5i
2007-2009SubaruLegacy2.5i Limited
2007-2009SubaruLegacy2.5i Special Edition
2005-2006SubaruLegacyGT
2005,2007-2009SubaruLegacyGT Limited
2006-2009SubaruLegacyGT spec.B
2005SubaruLegacyi
2005SubaruLegacyLimited
2006-2009SubaruOutback2.5i
2007SubaruOutback2.5i Basic
2008SubaruOutback2.5i L.L. Bean Edition
2006-2009SubaruOutback2.5i Limited
2008SubaruOutback2.5i Limited L.L. Bean Edition
2009SubaruOutback2.5i Special Edition
2008SubaruOutbackBase
2005SubaruOutbacki
2005SubaruOutbackLimited
2005-2006SubaruOutbackXT
2005-2009SubaruOutbackXT Limited
2015-2021SubaruWRXBase
2015-2021SubaruWRXLimited
2015-2021SubaruWRXPremium
MPN:
7094
